BOLLINGER
B4

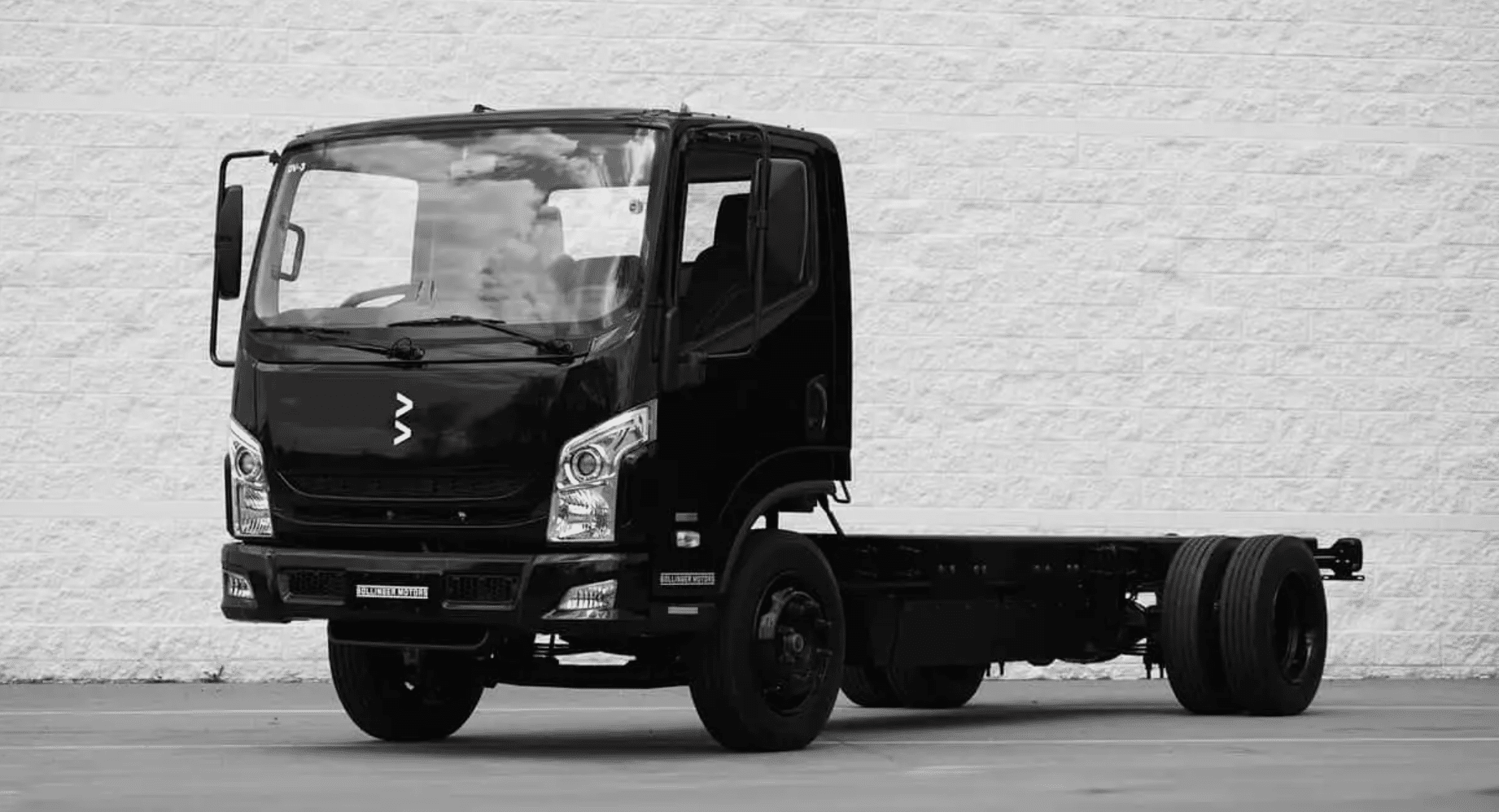

Seven new 2025 Bollinger B4 all-electric chassis cabs are in stock at Nuss Truck & Equipment. Purpose-built for commercial use, with a flat 40" frame, 7,325-lb payload and up to 185 miles of range for local fleets that work hard all day and return to base.
BUILT FOR THE JOB YOU NEED.
Flat, unobstructed frame rails and a 138" cab-to-axle make the B4 an easy starting point for your body builder.
DELIVERY

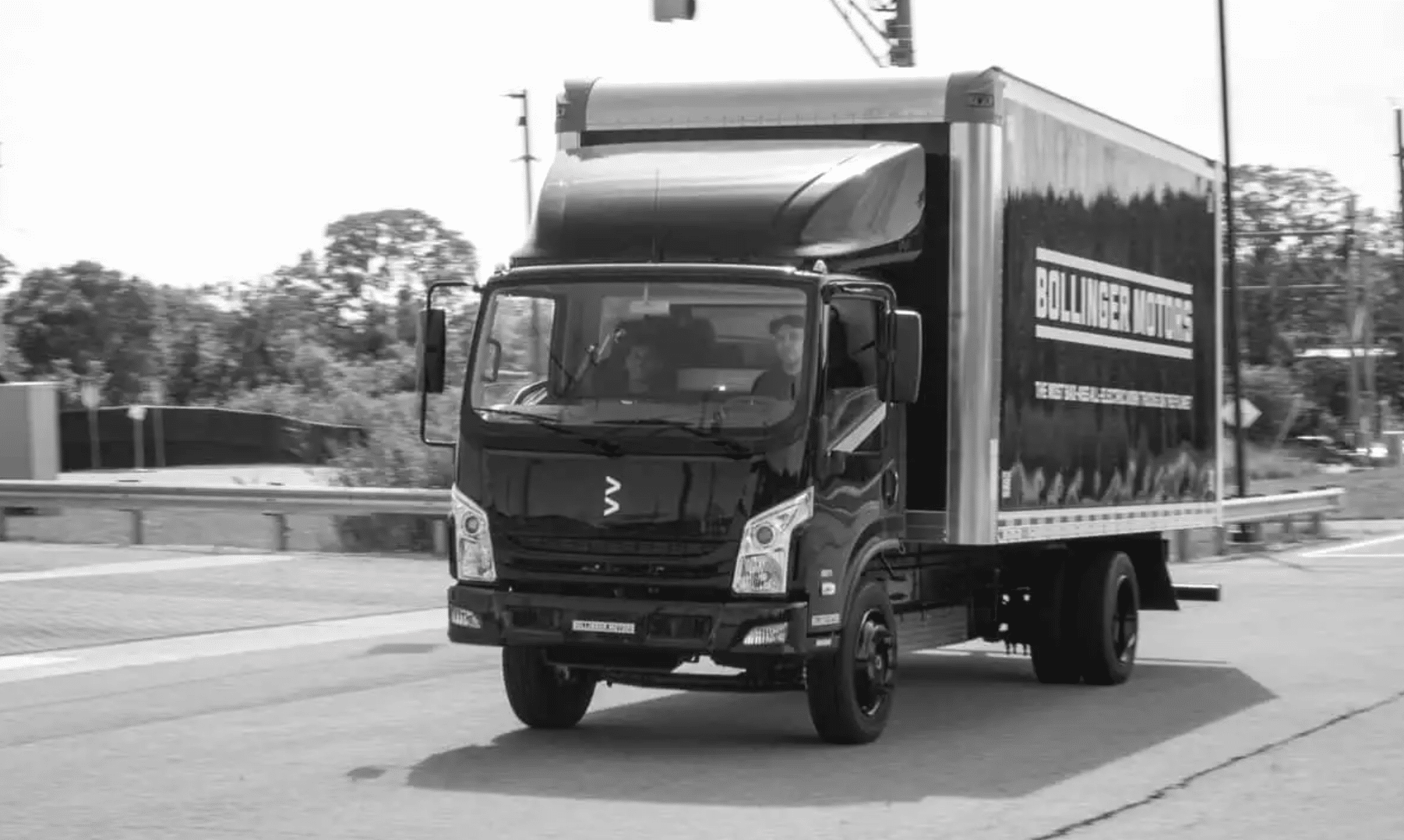

Box and van bodies in the 16'–18' range, with up to 7,325 lb of payload for parcel, food service and last-mile routes.
LANDSCAPE + MUNICIPAL

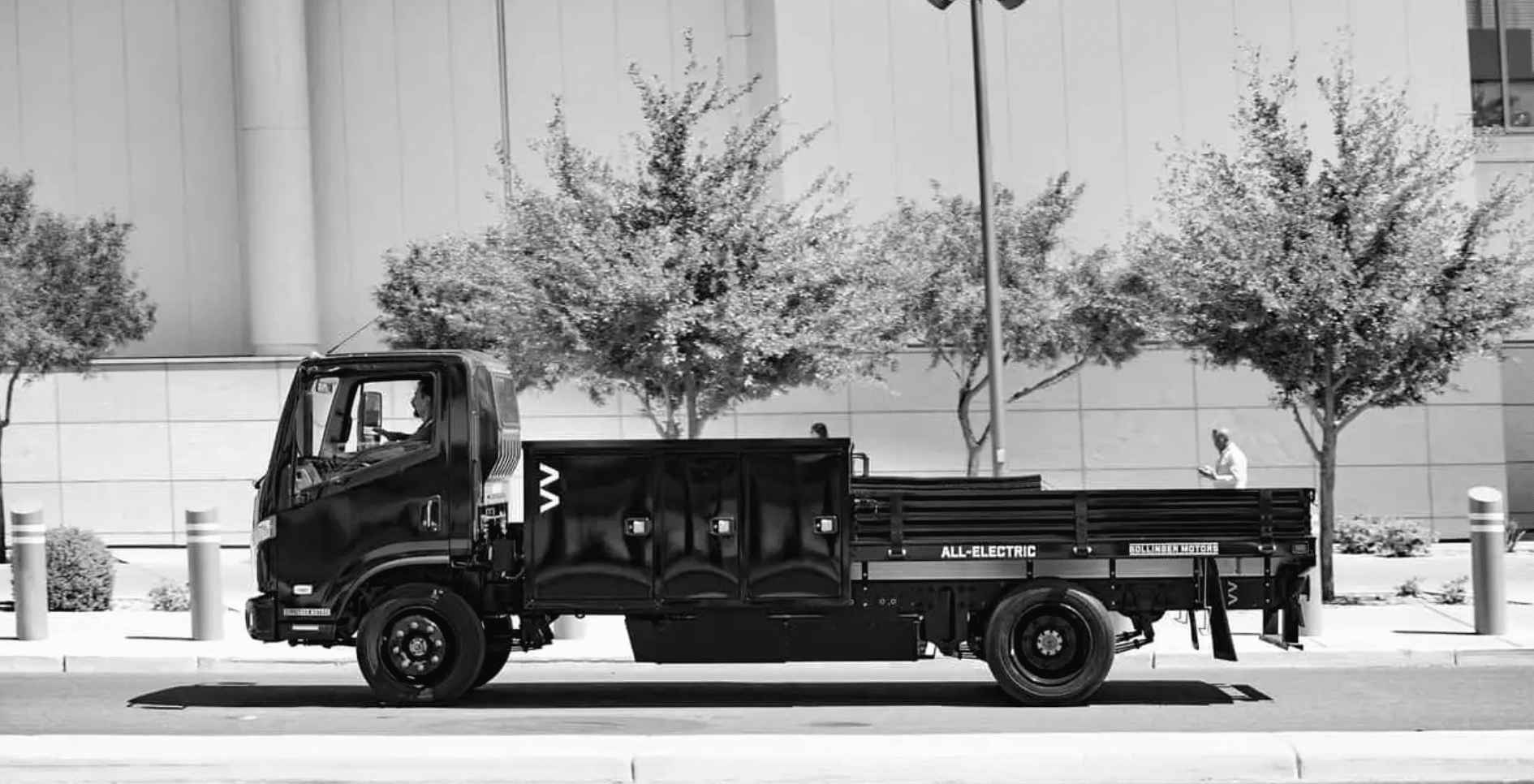

Stake, flatbed and dump-style bodies for crews that work locally and park at the same yard every night.

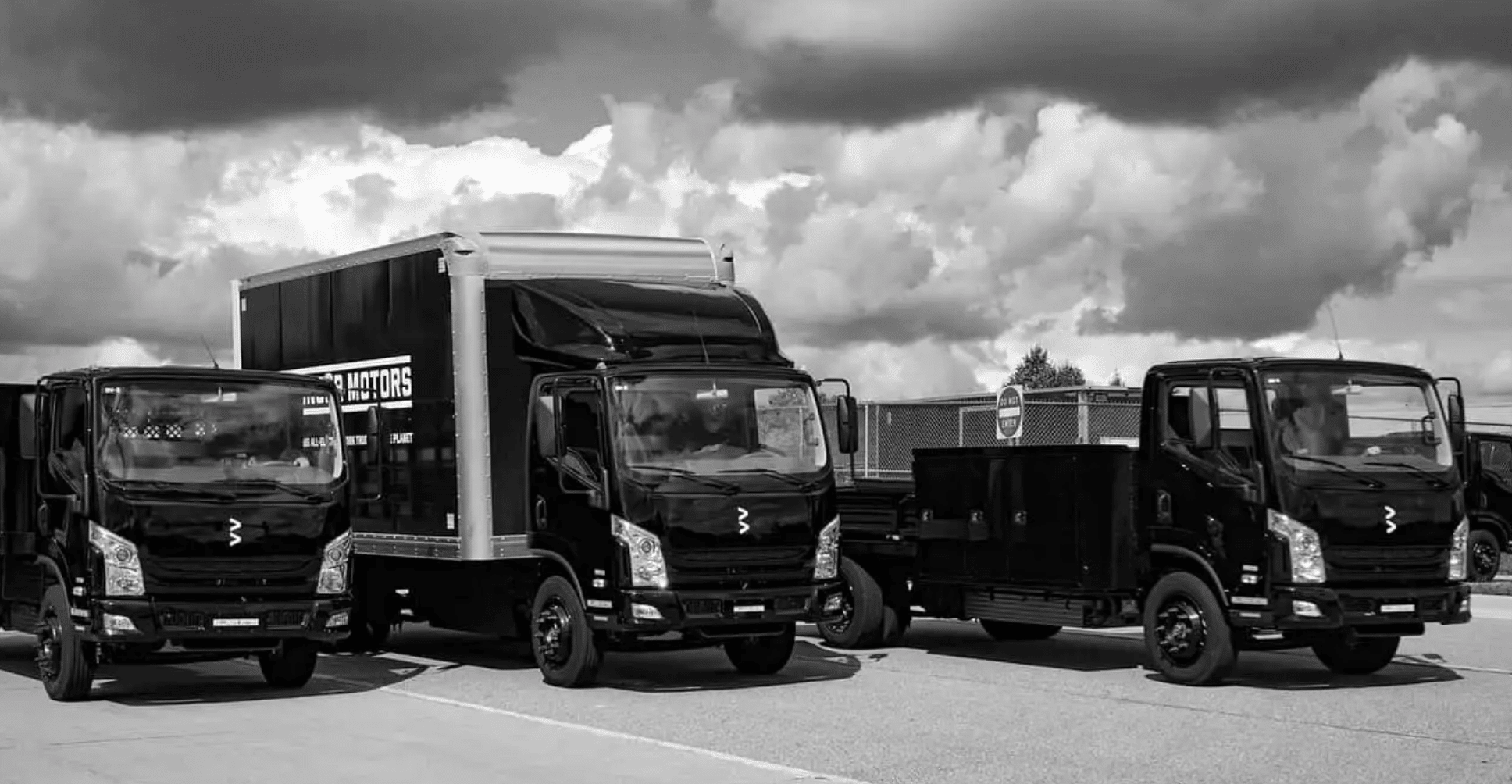

SERVICE + UTILITY
Service and utility bodies for territory-based crews: quiet in neighborhoods and charged at the shop overnight.
START HERE. BUILD YOURS.

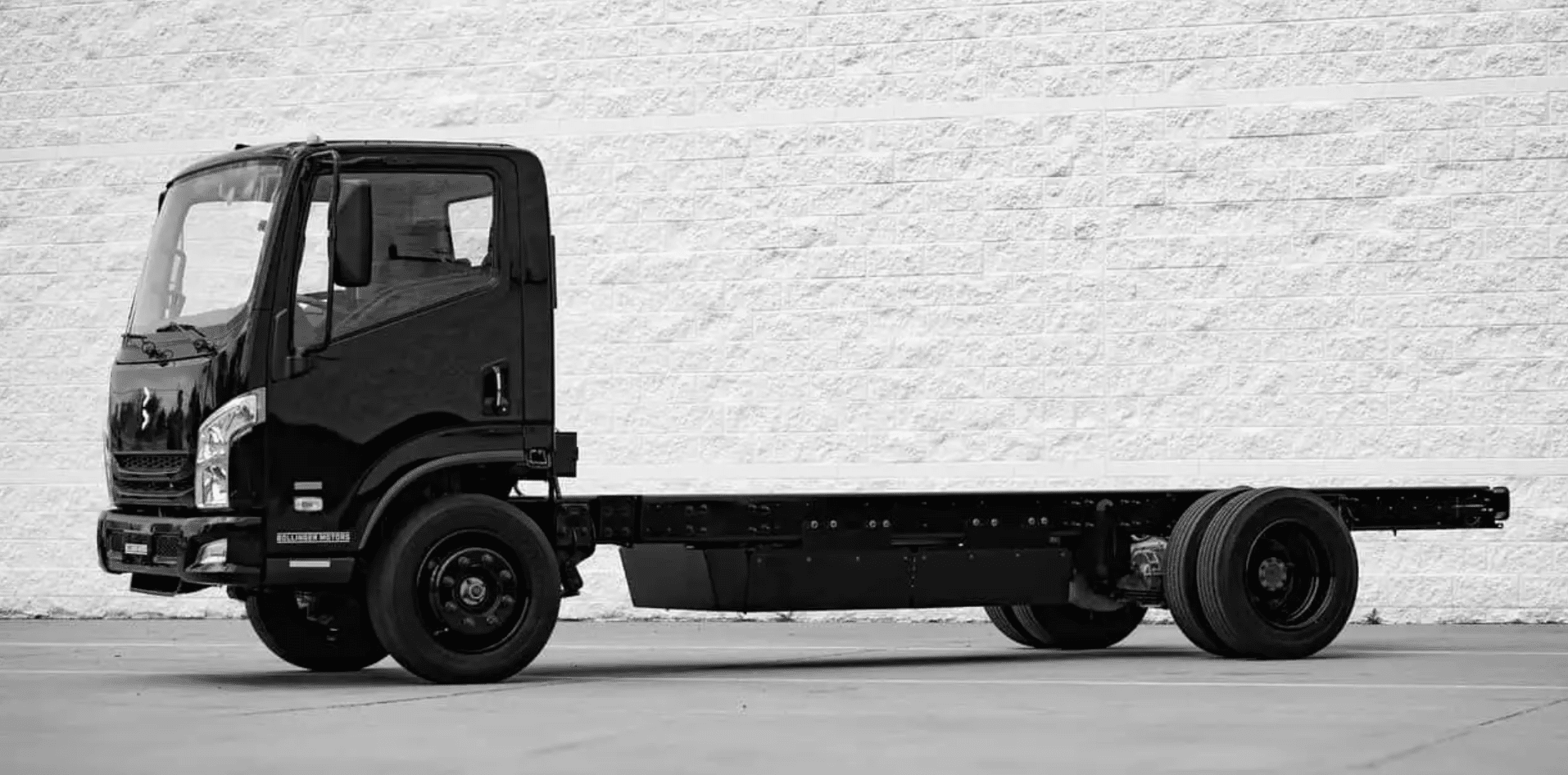

A bare chassis cab with a 40" frame and 158" wheelbase, ready for the body your operation needs.
FOR FLEETS THAT WORK ALL DAY AND RETURN TO BASE.
If your trucks run predictable routes under 185 miles a day and park at the same yard, the B4 fits the way you already work.
Municipal & public works
Set routes, overnight depot charging and fleet sustainability goals.
Utility, telecom & field service
Territory-based crews that return to the shop at the end of every shift.
Local delivery & distribution
Stop-and-go routes where electric torque and zero idling pay off.
Landscape & property maintenance
Local, seasonal work with a yard to plug into.
Campus & institutional fleets
Universities, hospitals, airports and school districts.
BUILT AROUND THE BODY YOU NEED.
40" frame, not 34"
Extra width houses the dual LFP battery packs between the rails, keeping weight centered and low.
Flat, unobstructed rails
Streamlined upfits with minimal customization and faster turnaround.
46' turning circle
A quad-bend tapered frame lets a 40" frame turn like a 34" one.
Service from below
Batteries and components are accessible from under the frame.
WORK ALL DAY.
CHARGE OVERNIGHT.
Range on a full charge
158 kWh battery, sized for a full local workday.
Level 2 · 0–100% @ 19.2 kW
Ideal for overnight charging at your yard.
DC fast · 0–100% @ 110 kW
When a truck needs to turn around mid-day.
Range and charge times per Bollinger 2025 B4 specification sheet. Actual results vary with load, climate and route. Ask Nuss about charging for your yard.

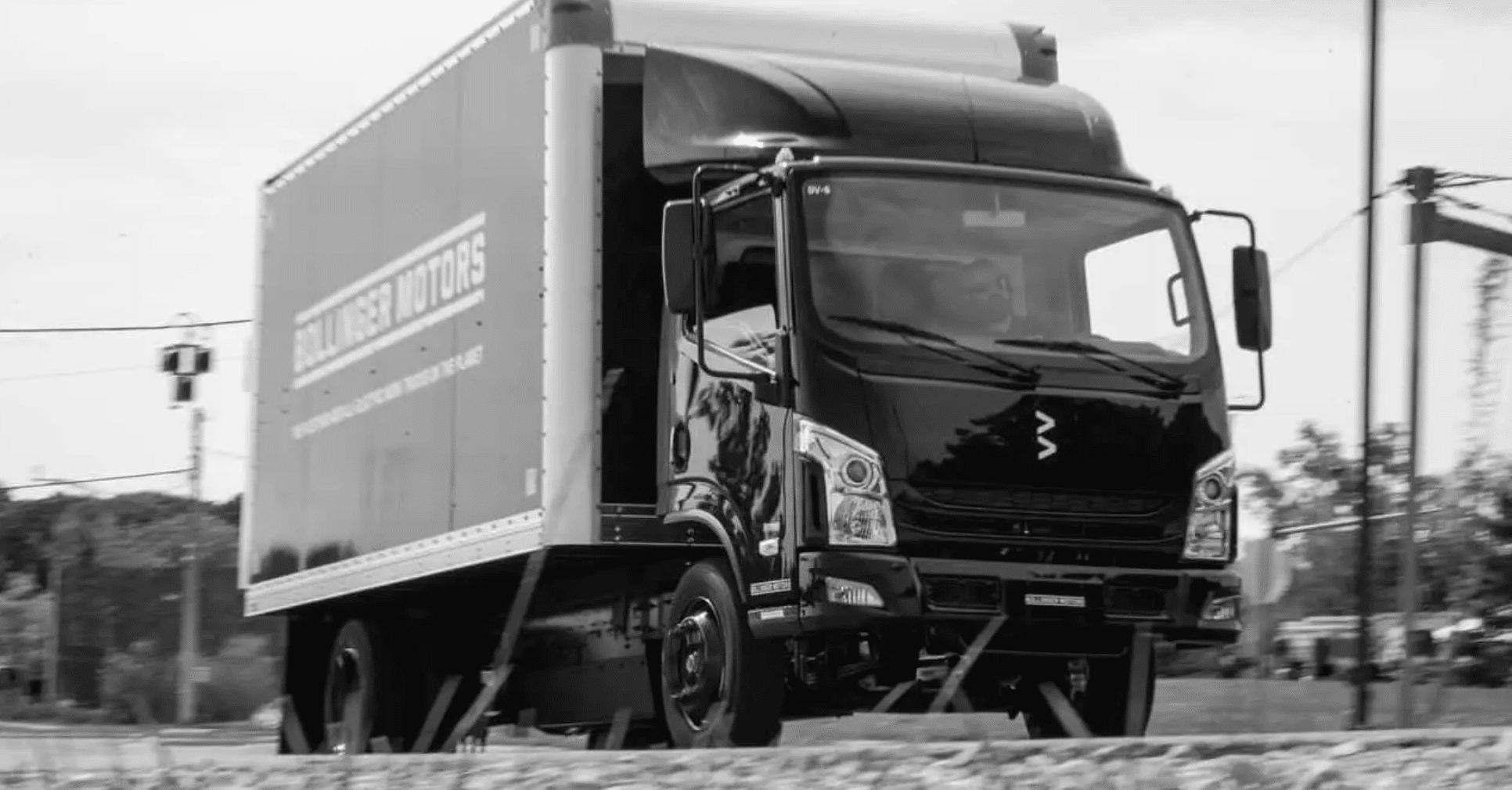

2025 BOLLINGER B4
| Overall width (OW) | 75.3" |
|---|---|
| Overall length (OAL) | 273.5" |
| Height (OH) | 91.2" |
| Height with fairing (OHWF) | 118" |
| Wheelbase (WB) | 158" |
| Front track (AW) | 62.5" |
| Rear track (BW) | 88.4" |
| Rail height (FH) | 32" |
| Cab-to-axle (CA) | 138" |
| Front overhang (BA) | 46.3" |
| Rear overhang (AF) | 69" |
| Approach / breakover / departure | 19° / 14° / 18° |
| Ground clearance (GC) | 9" |
| Vehicle class | 4 |
|---|---|
| GVWR | 15,500 lb |
| Rear axle (dual RWD) | 10,500 lb |
| Solid front axle | 6,500 lb |
| Payload | 7,325 lb |
| Turn circle | 46' |
| Cab to box | 8" |
| Frame width | 40" |
| Body length | 16'–18' |
| Tire size | 225/70R19.5G |
| Horsepower | 323 hp (241 kW peak) |
| Torque | 675 lb-ft (915 Nm) |
| Battery capacity | 158 kWh |
| Range | 185 miles |
| AC Level 2, 0–100% | 9 hrs @ 19.2 kW |
| DC fast charge, 0–100% | 2 hrs @ 110 kW |
Specifications per Bollinger Motors 2025 B4 specification sheet.
7 IN STOCK NOW.
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000001]
Cab: [Color] · Options: [—]
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000002]
Cab: [Color] · Options: [—]
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000003]
Cab: [Color] · Options: [—]
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000004]
Cab: [Color] · Options: [—]
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000005]
Cab: [Color] · Options: [—]
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000006]
Cab: [Color] · Options: [—]
2025 BOLLINGER B4
Chassis cab · Stock # [EQ0000007]
Cab: [Color] · Options: [—]
NEED MORE THAN ONE?
Ask about fleet pricing on multiple units and coordinating your upfits.
CALL YOUR NUSS REP TODAY.
LET'S FIND THE RIGHT B4 FOR YOUR FLEET.
Tell us about your routes and the body you need using the form below, or give us a call. A Nuss rep will follow up with pricing, availability and upfit options.
866-687-7477
