Introducing the all-new Volvo VNX
Built for extreme duty.
Strength You See. Toughness You Trust.
Meet the all-new Volvo VNX. Engineered for demanding vocational and heavy-haul applications, the VNX combines rugged durability, advanced powertrain technology, precision maneuverability, and Volvo's commitment to safety.
Performance at a glance
Up to
540 HP
Volvo D13 Engine
Ratings from 405 to 540 hp
Up to
1,950 lb-ft
Peak Torque
Torque from 1,450 to 1,950 lb-ft
Engineered for
Heavy-Haul Capability
Application-specific GCW ratings
Rated to your build with application approval
Specifications depend on model, configuration, and application approval. Some vehicles shown with optional equipment. Confirm ratings for your specific build with Nuss Sales.

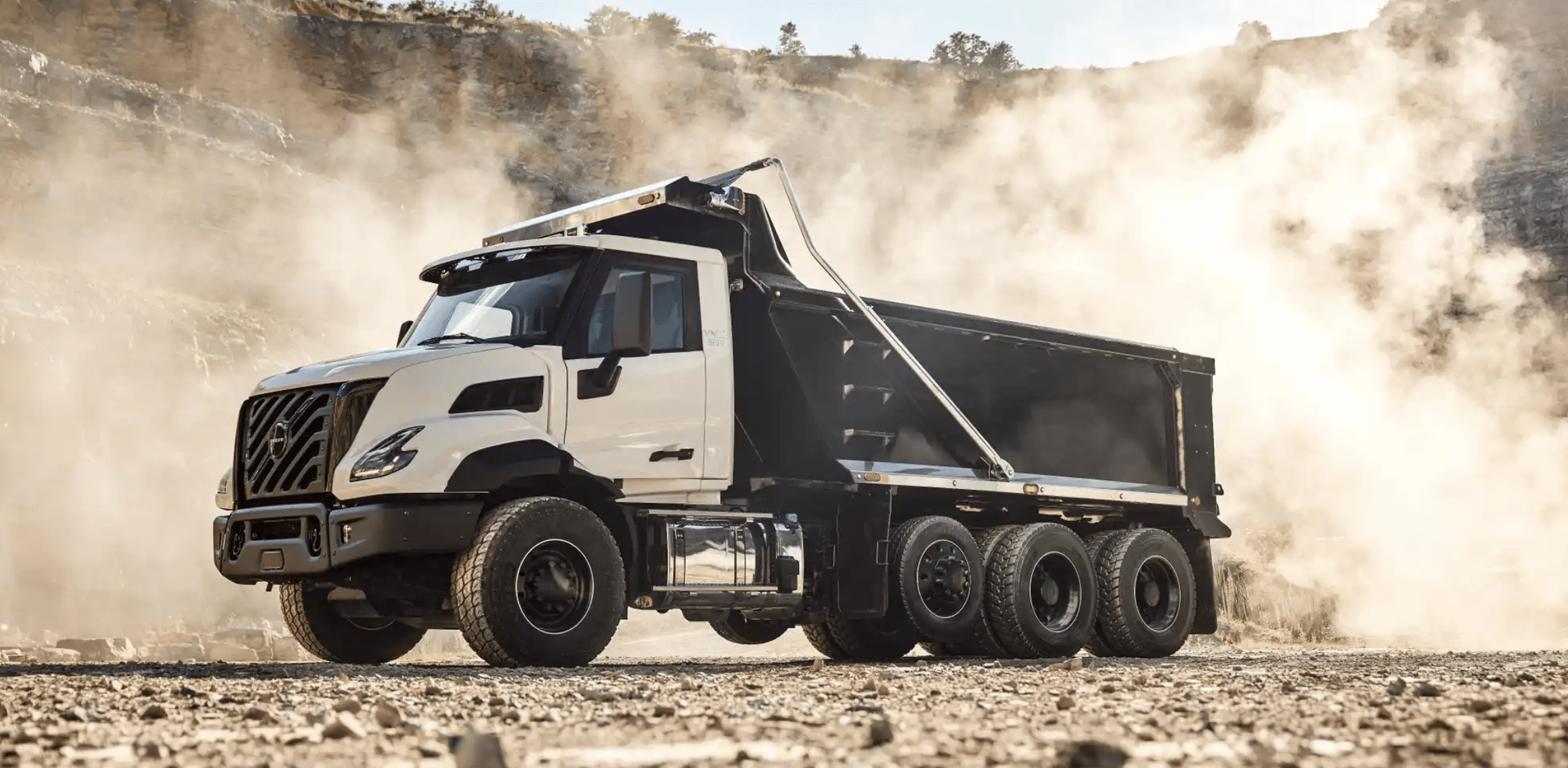

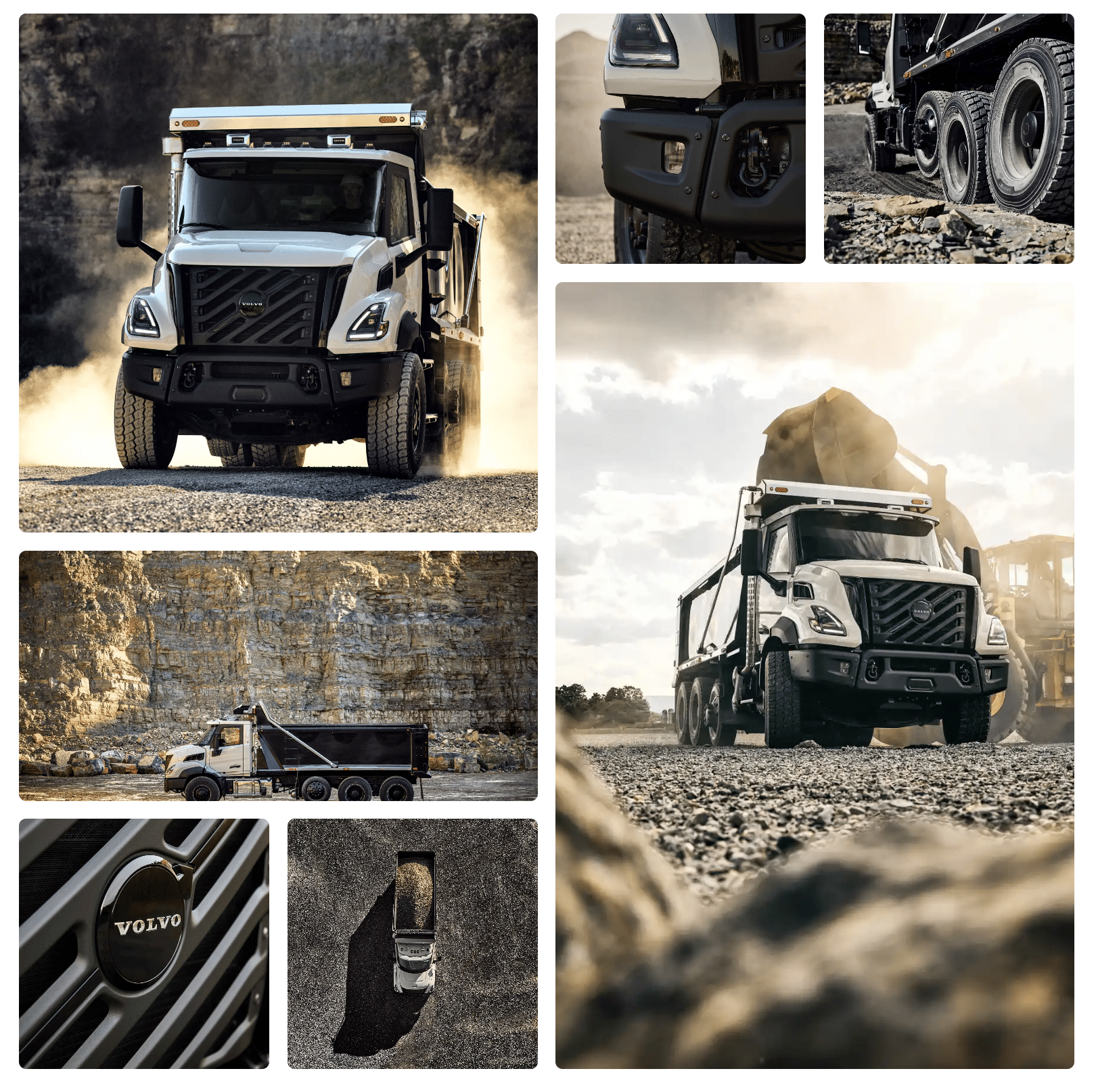

Built for the toughest jobs
Built for abuse. Engineered to perform.
From construction sites and quarries to heavy-haul routes and demanding vocational applications, the Volvo VNX is built to handle challenging conditions without compromising driver comfort or control.
01
Rugged Construction

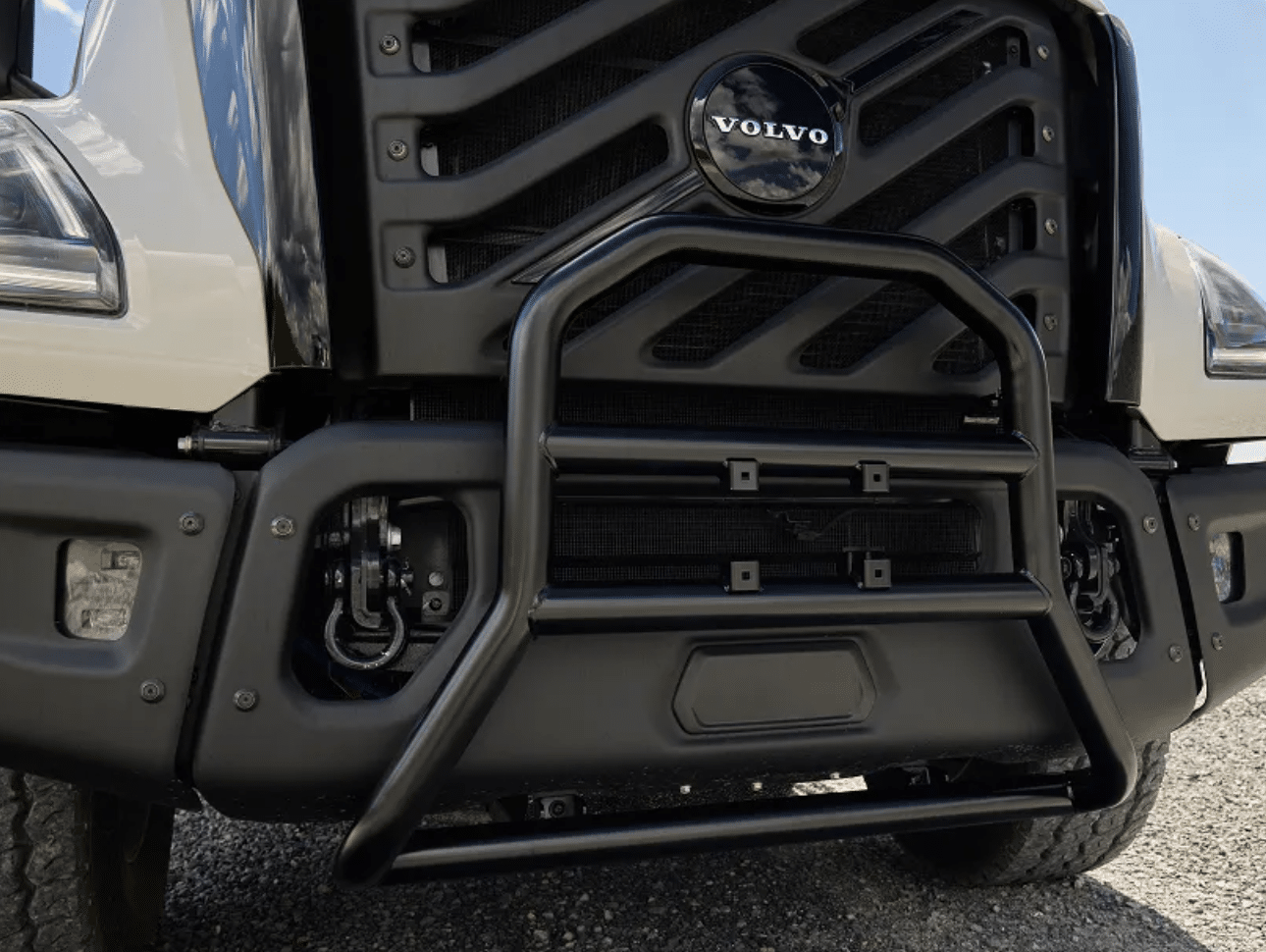

High tensile-strength steel frame rails, reinforced hood construction, heavy-duty bumper options, and substantial ground clearance. The all-metal grille with steel mesh backing protects critical components from debris.
02
Heavy-Haul Capability

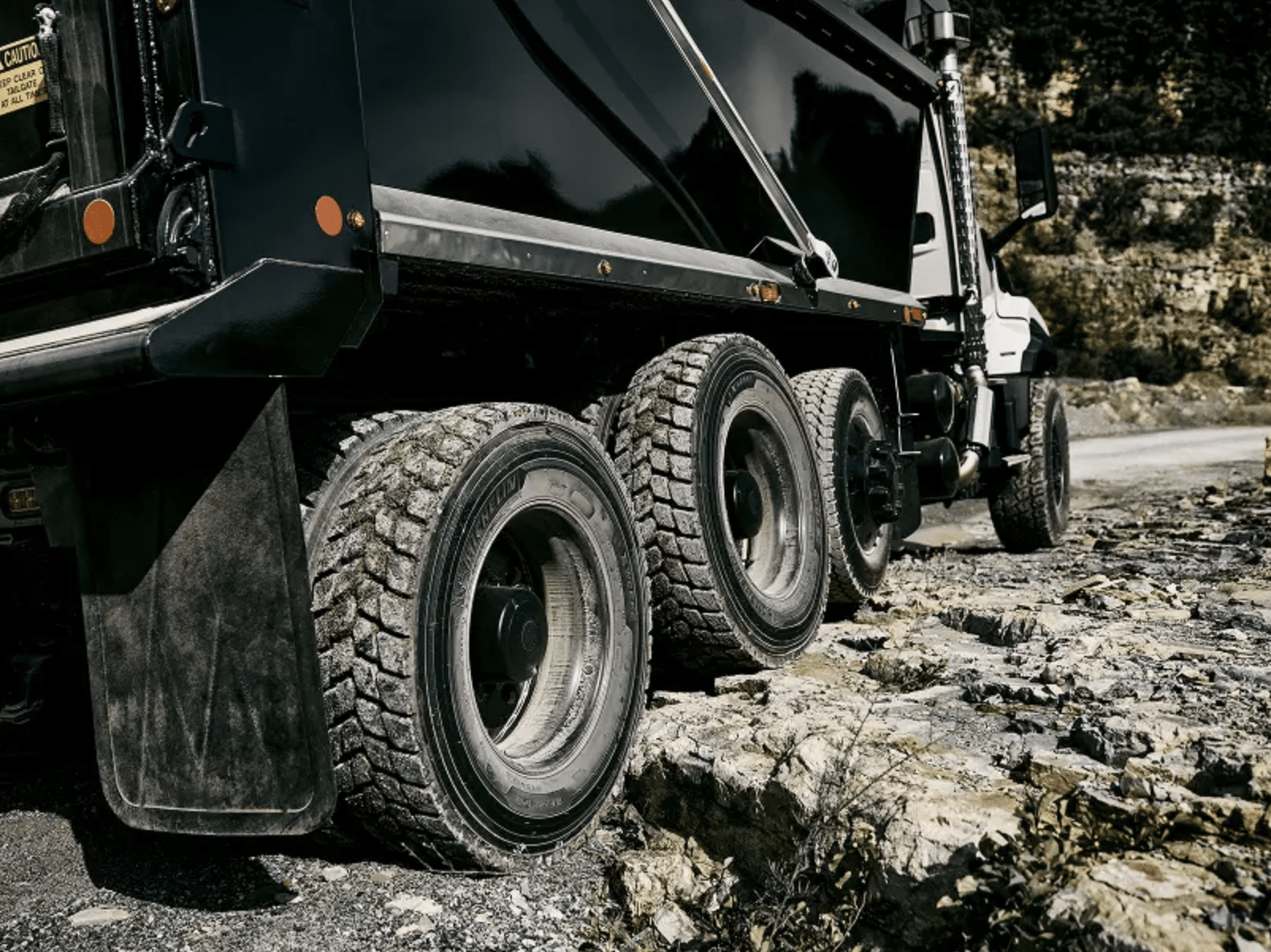

Flexible axle and suspension configurations designed for demanding loads and challenging operating environments, including the T-Ride, VOAS, and GRAS rear suspensions plus axle-forward and axle-back layouts.
03

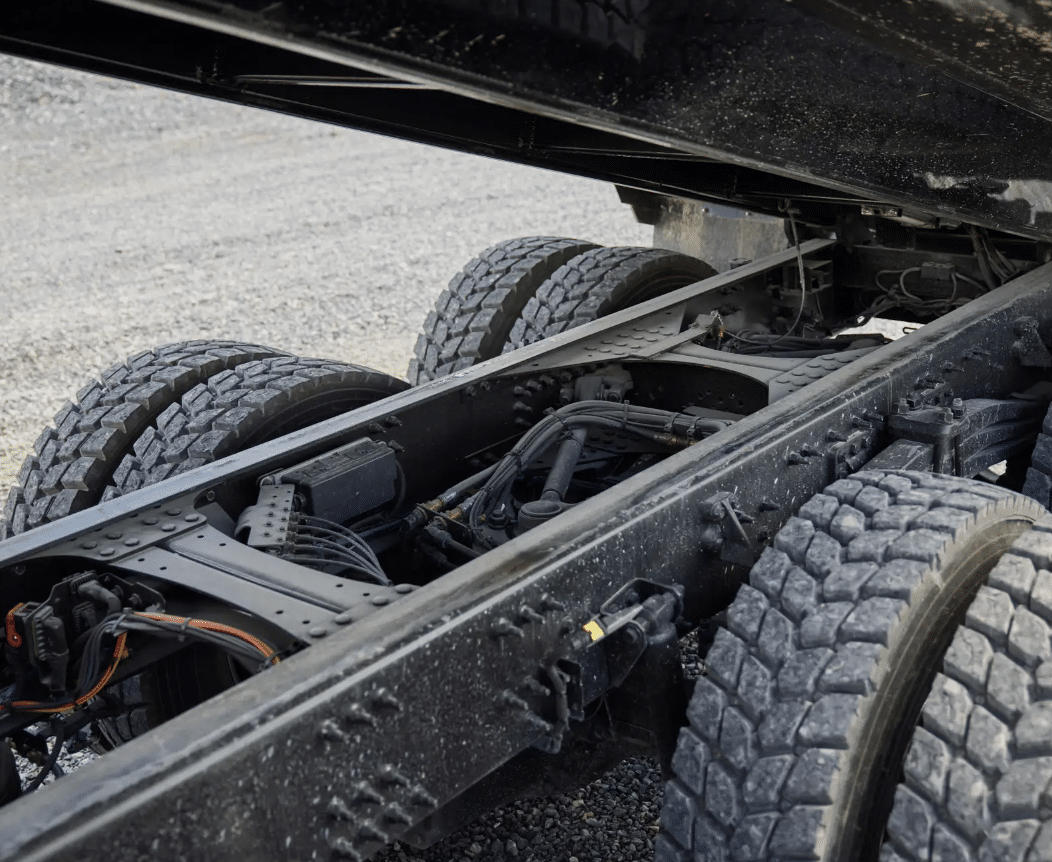

Bodybuilder-Ready Design
Clean frame rails, factory cab passthrough options, customizable controls, and PTO configurations simplify specialized installations, so your finished truck gets to work sooner.
Powertrain
Power that works as hard as you do.
The new Volvo D13 and the I-Shift for Severe Duty transmission are engineered together to deliver torque where vocational work needs it, with less wear across the driveline.

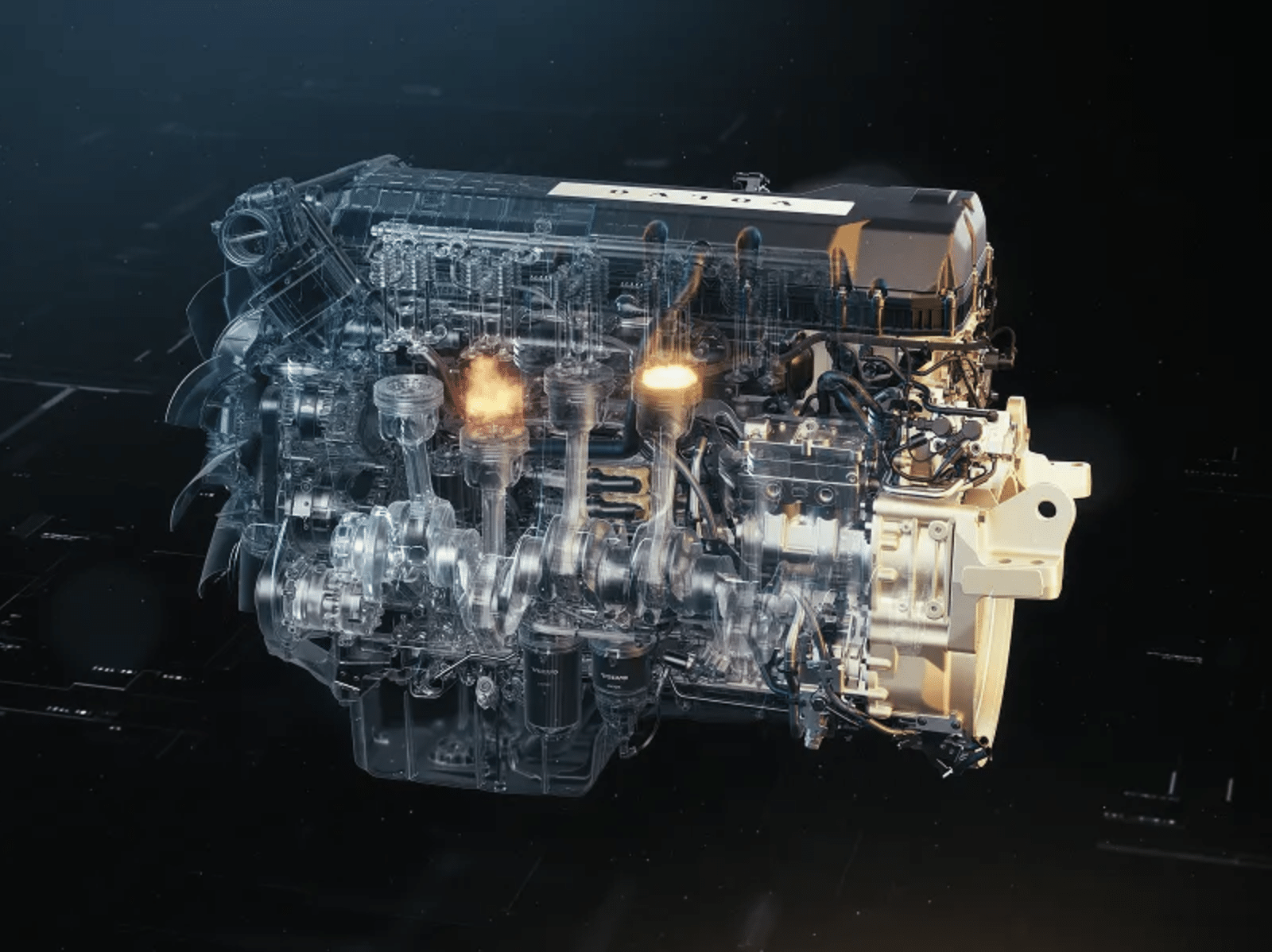

Volvo D13 Engine
The next-generation 13-liter carries Volvo's reputation for rock-solid reliability, with lower NOx emissions and expanded power and torque for vocational duty.
- Horsepower405–540 hp
- Torque1,450–1,950 lb-ft
- Engine ratings for VNX13
- Engine brakeUp to 630 braking hp
- AftertreatmentCompact, staged SCR
I-Shift for Severe Duty
Standard on every VNX. Hardened engaging sleeve and gears, a new clutch design, and upgraded software are engineered for higher GCW settings and constant on- and off-road shifting.
- 12-speed, Direct or OverdriveStandard
- 13-speed, Direct or OverdriveAvailable
- 14-speed Overdrive with Crawler GearsAvailable
- Crawler Gear speedDown to 0.6 mph
Performance Plus
Low-speed control, built in.
Terrain Brake
With the brake stalk in B mode, lifting off the accelerator applies the foundation brakes for controlled low-speed braking.
Change Direction
Shift between forward and reverse with your foot on the accelerator. The truck brakes to a stop before changing direction.
Rock Free
Creates a rocking motion to free the truck from mud, snow, or sand. An alternative to a towline.
Power Launch
Rapid, electronically controlled clutch engagement delivers a burst of torque to launch on soft ground.
Auto Hold
Keeps the truck stationary after a full stop, on any surface, until it moves or the parking brake engages.

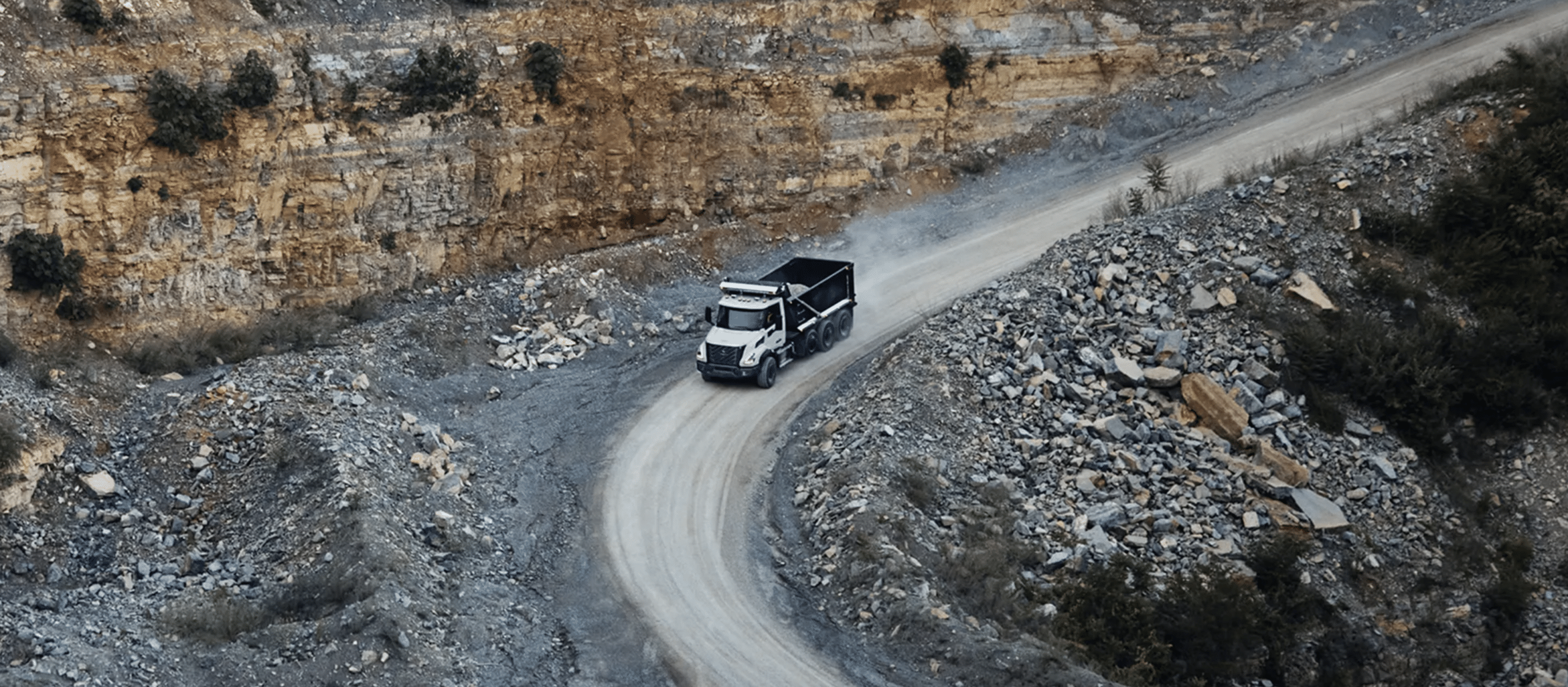

Precision and control
Control when every inch counts.
Volvo Dynamic Steering
AvailableUp to 85%
Less steering effort at low speeds
Helps operators maneuver in tight jobsites and crowded worksites, even with the larger tires common in vocational work, while adding directional stability on rough ground.
- Return-to-Center straightens the wheel after tight turns
- Optional personal settings to tune steering feel
- Dampens vibration and feedback from rough surfaces
- Inputs monitored 2,000 times per second

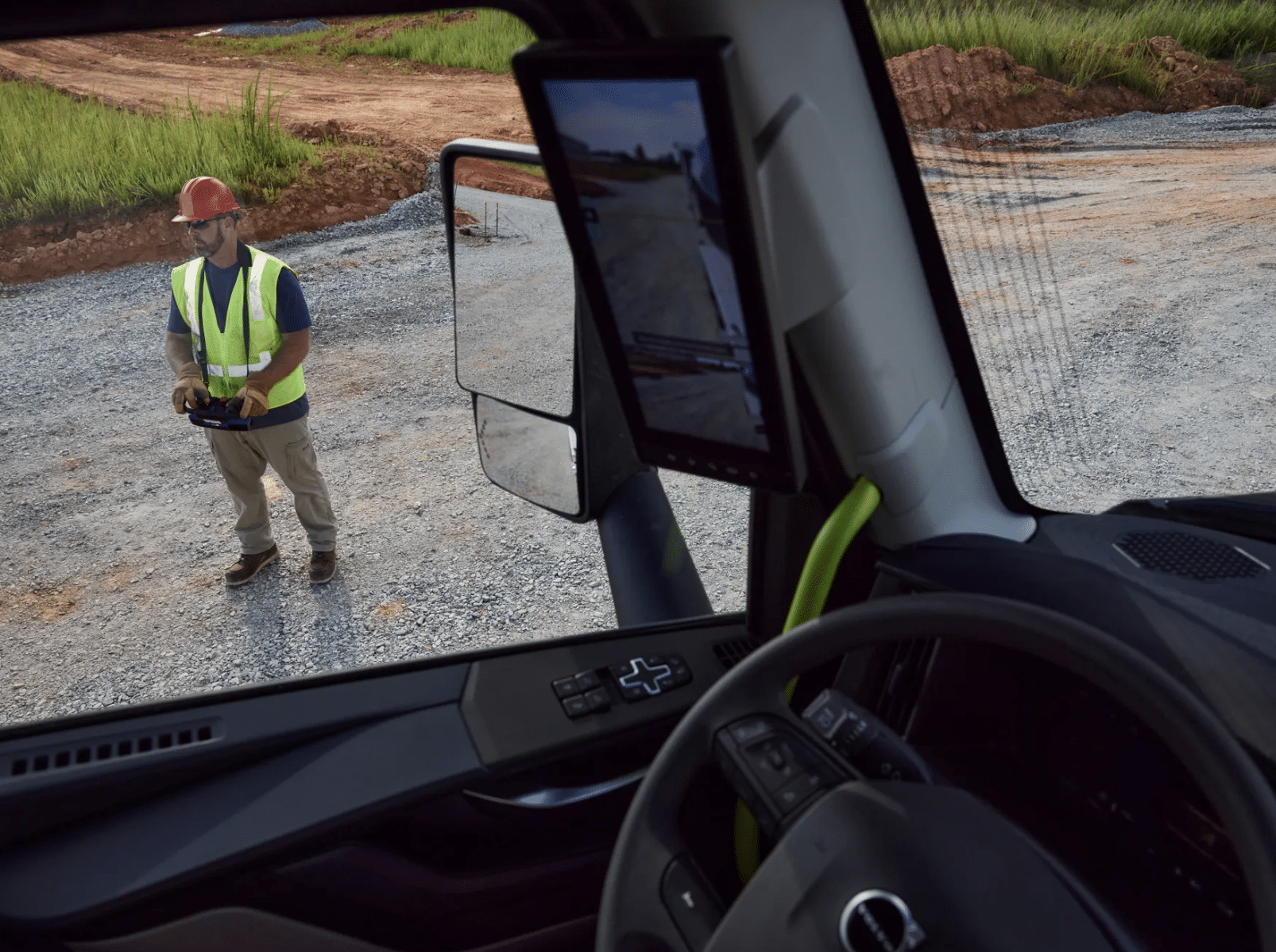

Remote Steer
AvailableUp to 5 mph
Steer from outside the cab
A secure wireless remote lets the operator guide the truck during slow-speed maneuvers from the safest vantage point, ideal for concrete mixers, transfer dumps, and gravel slingers.
- Better visibility for exact positioning
- Reduces the need for a separate spotter
- Fewer trips in and out of the cab
Remote Steer is installed after dealership delivery. Ask Nuss Sales about availability for your application.
Safety without compromise
Safety is built into every Volvo.
The all-new Volvo VNX brings advanced driver assistance, enhanced visibility, and rugged cab protection to demanding vocational operations.
Volvo Active Driver Assist
The standard VADA package on every new VNX.
- Long-range forward pedestrian detection and warning
- Forward collision warning and mitigation
- Automatic emergency braking
- Lane departure warning
- Adaptive Cruise Control with stop-and-go
VADA Plus
All standard VADA elements, plus:
- Volvo Dynamic Steering with personal settings
- Lane Keep Assist
- Passenger-side blind spot alerts for pedestrians and road users

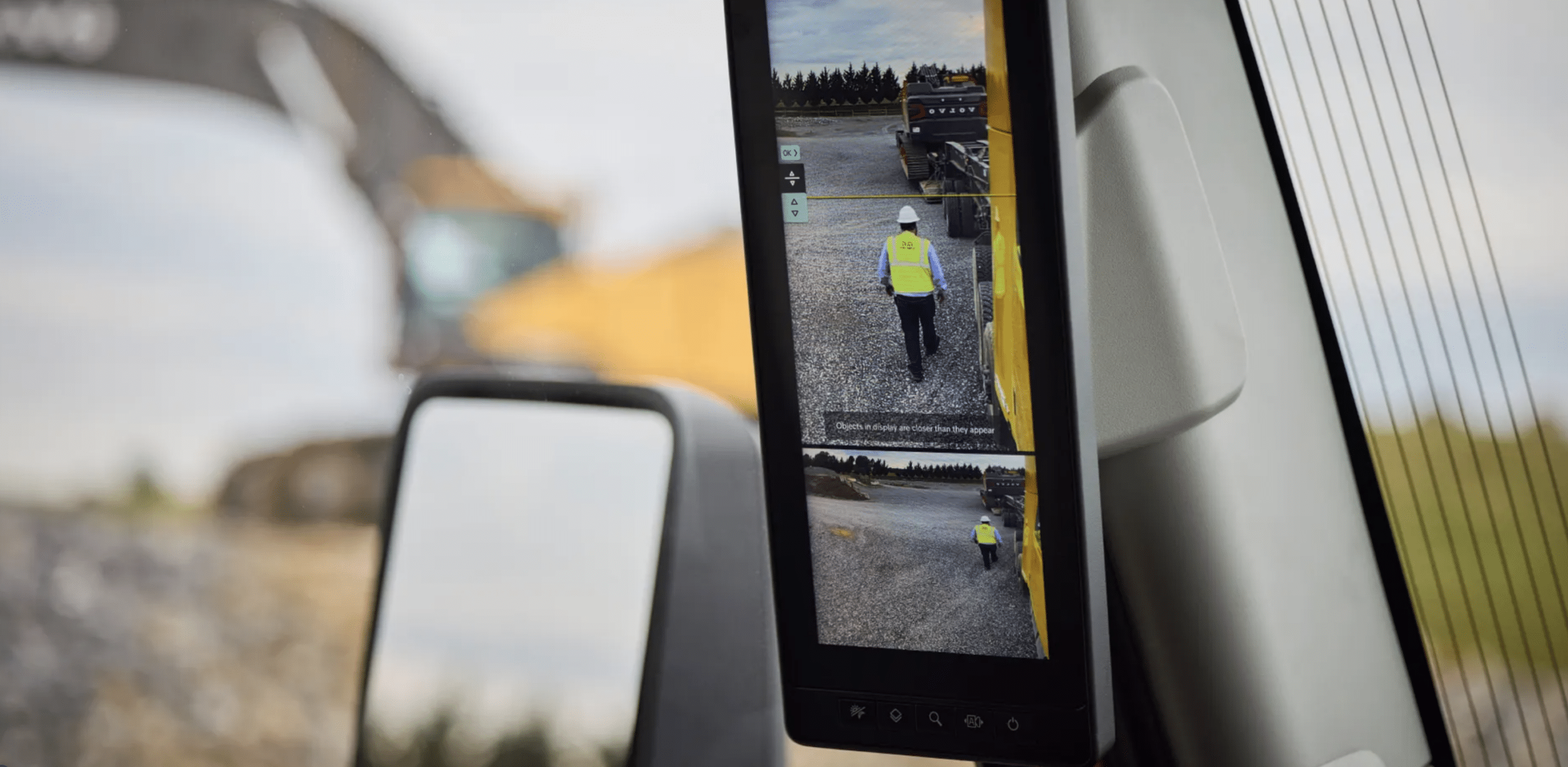

Camera Monitor System
A-pillar displays replace side mirrors, with infrared technology for low light and reference lines to track the trailer.

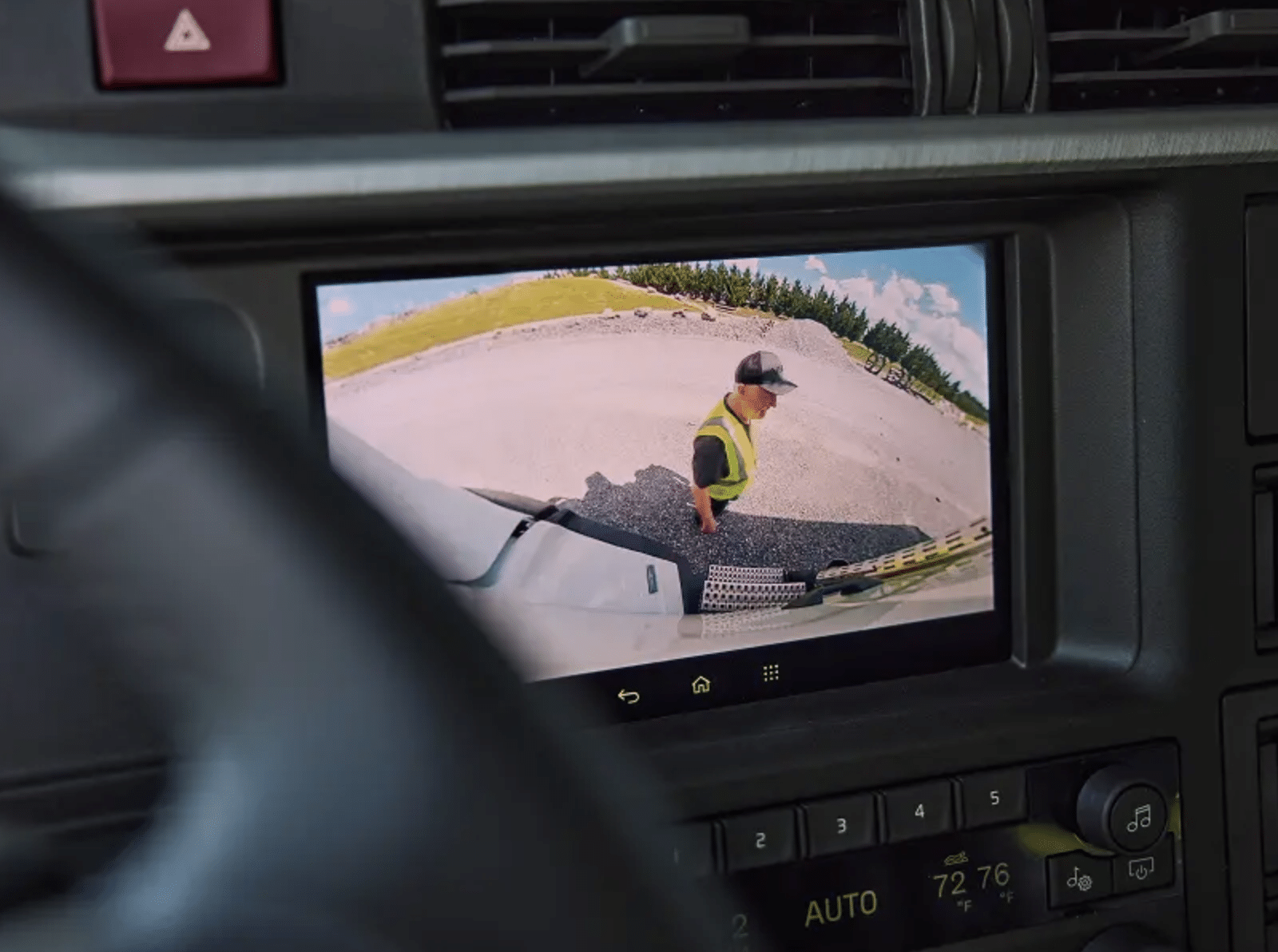

Multi-Camera System
Connect up to six additional cameras through the infotainment center, placed where your application needs them.
High-Strength Steel Cab
33% more ultra-high-strength hot-stamped steel than the legacy model, designed to exceed the Swedish Impact Test.
E-Call
Automatically calls 911 after a rollover or airbag deployment and, where supported, shares crash location information.
Some features may not be available based on the equipment setup of your application. Nuss Sales will walk through the safety specification for your operation.
Download VNX Safety Brochure
Driver comfort
Rugged outside. Refined inside.
The less drivers reach, the more they can focus on the jobsite. Everything is where you need it.
- Ergonomic cab designA wraparound dash brings controls, infotainment, and the emergency brake closer.
- Driver-focused controlsGear selection and engine braking on the stalk; PTO and body controls simple to use.
- Improved visibilityA panoramic windshield with a unique slope and curvature.
- Premium seating optionsFive seat options, with heating, ventilation, and massage available.
- Digital displaysA 12-inch driver information display and an optional 9-inch infotainment center.
- Available sleeper configurationsVNX 440 and 640 mid-roof sleepers in Core and Edge Black trims.
- Thoughtful storage and lightingExpanded storage, plus overhead, footwell, and backwall lamps in sleepers.
The VNX family
The right VNX for the job.
All models are available in axle-forward and axle-back configurations.
Daycab · Straight truck

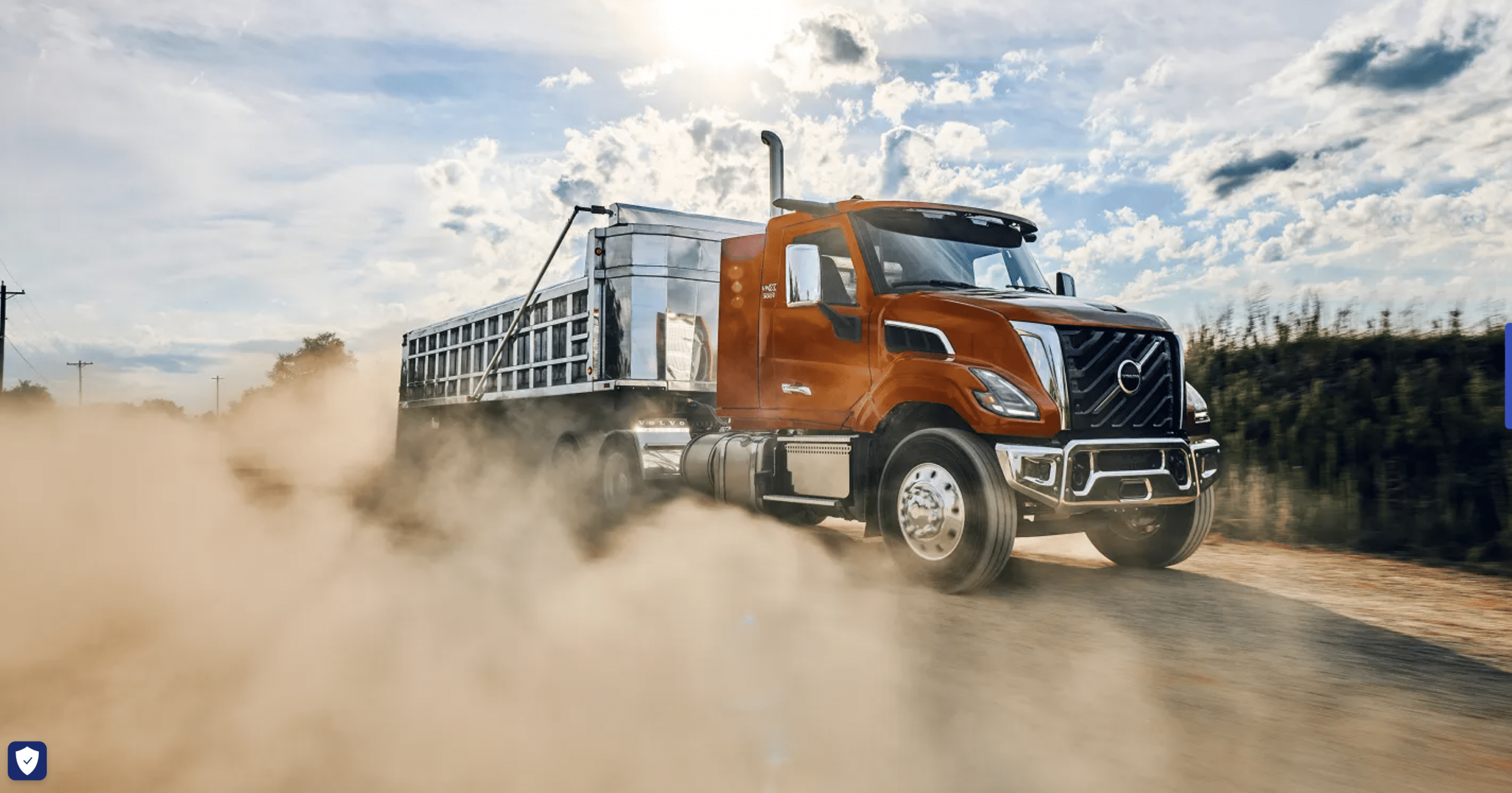

VNX 300 Straight Truck
Vocational applications including dump trucks, mixers, and roll-offs. A bodybuilder-ready design streamlines installation and reduces time to delivery.
- Axle configurations: 4x2, 6x4, 8x4 pusher, 8x4 tag, 8x6, 10x4
- Clean frame rails with in-seat battery box
- Factory cab passthrough and bodybuilder control panel
- Rear engine, forward engine, and transmission PTO options
Daycab · Tractor

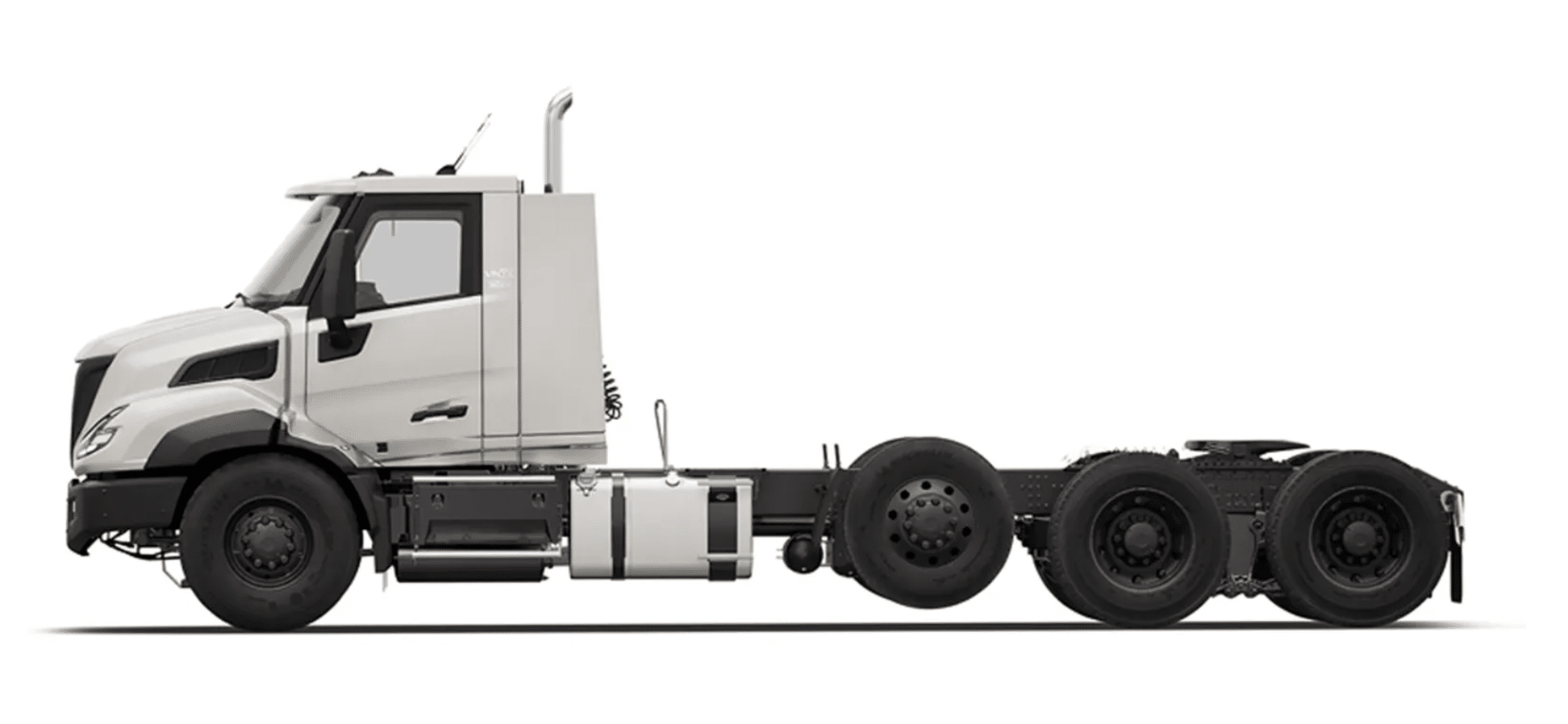

VNX 300 Tractor
Local heavy-haul, agriculture, and waste and recycling. Like all VNX models, it comes with components designed for rough, off-road environments.
- Axle configurations: 6x4, 8x4 pusher, 8x6
- Axle-forward and axle-back configurations
- Back-of-cab camera standard on tractor units
Mid-roof sleeper
VNX 440
Mid-roof sleeper for regional heavy-haul and equipment delivery, built to maximize comfort and productivity on runs that may need an overnight away.
- Sleeper accommodates a 35"-wide twin mattress
- Available as a tractor or straight truck
- Core and Edge Black interior trim levels
62" mid-roof sleeper · Tractor only

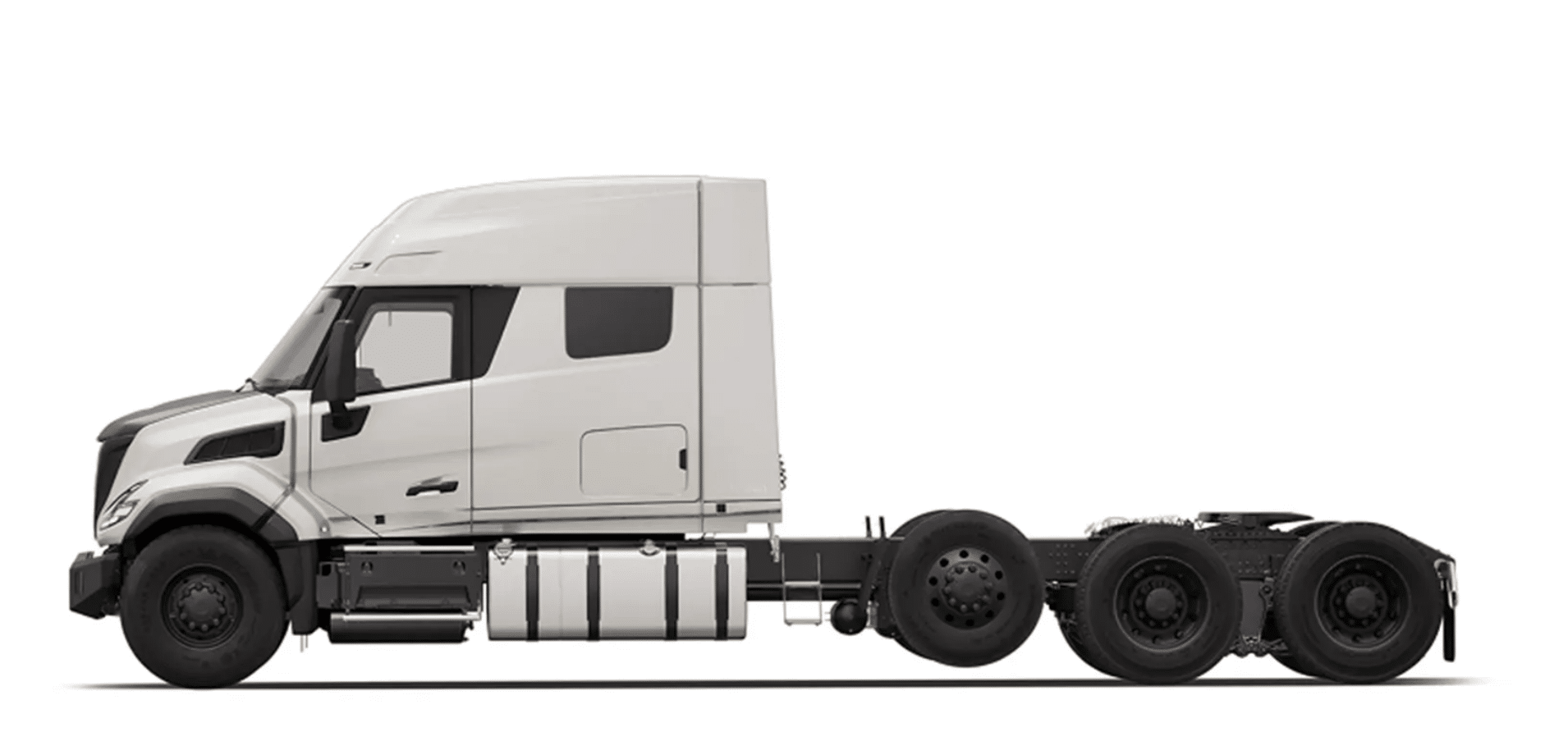

VNX 640
62-inch mid-roof sleeper for long-distance heavy-haul operations, with a long list of amenities for drivers who live on the road.
- Exclusive reclining mattress option
- Factory-installed refrigerator options
- Upper bunk converts to additional storage
Applications
Ready for your industry.
01
Construction
Dumps, roll-offs, and jobsite hauling, with the ground clearance and bumpers to take punishment.
VNX 300 Straight Truck
02
Heavy‑Haul
Equipment moves and high-GCW work with the I-Shift for Severe Duty and D13 engine brake.
VNX 300 Tractor · 440 · 640
03
Agriculture
Local hauling from field to elevator, with a daycab tractor built for rough ground.
VNX 300 Tractor
04
Logging
Regional log and equipment deliveries, with a sleeper for runs that keep you out overnight.
VNX 440
05
Concrete
Mixers powered on the move by rear engine PTO, plus Remote Steer for precise pours.
VNX 300 Straight Truck
06
Waste & Refuse
Refuse packers and roll-off routes, with PTO options and tight-space maneuverability.
VNX 300 Straight Truck · Tractor
Nuss Truck & Equipment
Ready to put the VNX to work?
Whether you're building a vocational fleet or specifying a heavy-haul truck, the Nuss Truck & Equipment team can help you explore Volvo VNX configurations for your operation.
Prefer to call? 1-866-687-7477
